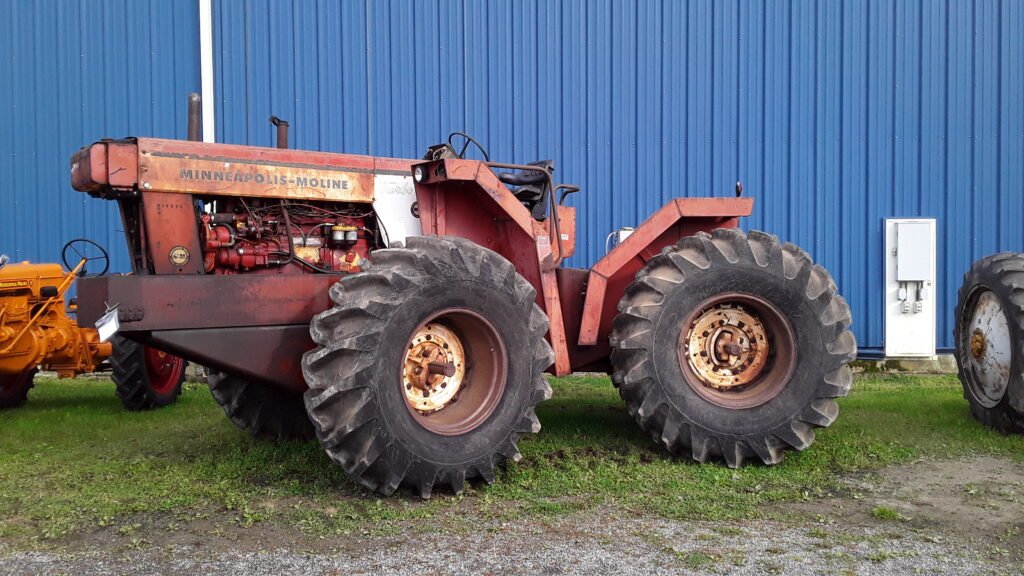

Minneapolis-Moline A4T-1400
Verified
The Minneapolis-Moline A4T-1400 was produced from 1969 to 1970 (approx.), per the cited source below. We publish only what we can document: serial-number ranges, specifications, paint, and parts appear here as they are verified against primary sources. If you own documented literature for this model, please send it in to help complete the record.
Specifications
| Years | 1969 - 1970 |
|---|---|
| Engine | Minneapolis-Moline 8.3L 6-cyl diesel |
| Engine HP | 154 hp (114.8 kW) |
| PTO (claimed) | 139 hp (103.7 kW) |
| Transmission | 10-speed |
| Drive | Four-wheel drive |
| Steering | Hydrostatic power |
| Brakes | Hydraulic dry disc |
| Wheelbase | 120 inches (304 cm) |
| Weight | 17,300 lbs (7,847 kg) |
| Front tire | 18.4-34 |
| Rear tire | 18.4-34 |
| Hydraulic capacity | 8 gallons (30.3 L) |
| Hydraulic pressure | 1,750 psi open / 2,000 psi closed |
| Hydraulic pump flow | 17 gpm open / 20 gpm closed |
| Hydraulic valves | 2 or 3 |
| Hitch | Type III/II |
| PTO | 1000, independent, rear |
| Cab | Open station standard; optional cab with heat |
| Fuel capacity | 100 gallons (378.5 L) |
Specifications per the cited source below. Manufacturer-advertised figures can differ from tested values — confirm restoration-critical specs against factory literature.
Source: TractorData: A4T-1400
Finding Parts
We don't publish part numbers we can't verify against factory literature. The authority for this model's part numbers is its factory parts catalog; interchange is serial- and configuration-dependent, so always confirm against the parts book before buying.
Surviving Examples (collector-reported census)
No tractors registered for this model yet. The MinnieMo registry is owner-submitted and moderator-reviewed — help start the census.
Sources & Verification Notes
Status: Verified
Primary source: TractorData — Minneapolis-Moline model listings tier 4
Last checked: 2026-05-31
