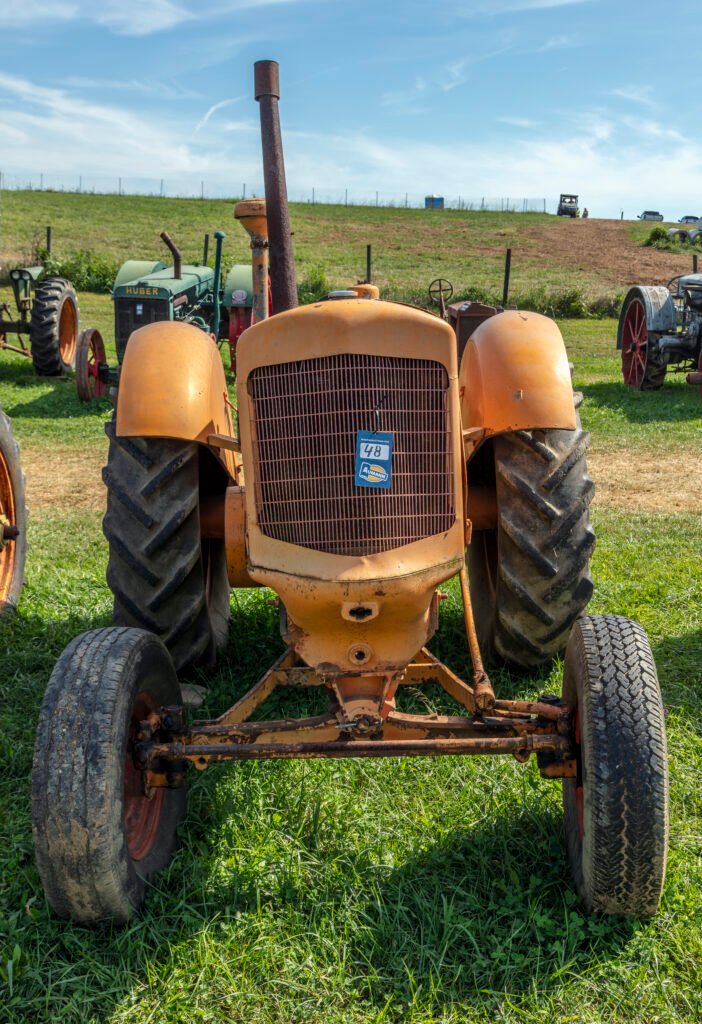

Minneapolis-Moline RTS
Verified
The Minneapolis-Moline RTS was produced 1939–1954 (1939–1947 ranges documented here). This page documents serial-number-by-year ranges for identification and dating, cross-checked against two published references that agree on the figures. It does not list horsepower, engine, or production specifications until each is confirmed against factory literature.
Serial numbers were stamped on the right side of the transmission case; always confirm the number against your own tractor and parts book before relying on it — Minneapolis-Moline serial numbers were re-stamped, swapped, and re-rated over the years, and were not unique across models.
Use the Serial Number Lookup to decode a specific number.
Serial Number Ranges
| Year | Serial range | Number type | Source confidence |
|---|---|---|---|
| 1939 | 400001 – 402200 | tractor plate | Verified High |
| 1940 | 402201 – 405575 | tractor plate | Verified High |
| 1941 | 405576 – 407850 | tractor plate | Verified High |
| 1942 | 407851 – 408825 | tractor plate | Verified High |
| 1943 | 408826 – 409357 | tractor plate | Verified High |
| 1944 | 409358 – 410747 | tractor plate | Verified High |
| 1945 | 410748 – 413754 | tractor plate | Verified High |
| 1946 | 413755 – 416544 | tractor plate | Verified High |
| 1947 | 416545 – 416545 | tractor plate | Verified High |
Engine
- 165 ci (2.7 L) Four-Cylinder Gasoline (165 ci / 2.7 L, Gasoline)
Specifications
| Years produced | 1939 - 1954 |
|---|---|
| Engine | Minneapolis-Moline 2.7L 4-cyl gasoline |
| Drawbar (claimed) | 20 hp / 14.9 kW |
| Belt (claimed) | 23 hp / 17.2 kW |
| Transmission | 4-speed unsynchronized gear |
| Wheelbase | 69 inches / 175 cm |
| Weight | 3100 lbs / 1406 kg |
| Tires (front) | 5.00-15 |
| Tires (rear) | 10-34 |
| Charging system | generator |
| Battery | 6 volts |
| PTO | Type 560 |
| Belt pulley RPM | 933 |
| Fuel tank | 14 gal / 53.0 L |
Specifications per the cited source below. Manufacturer-advertised figures can differ from tested values — confirm restoration-critical specs against factory literature.
Source: TractorData: RTS
Factory Paint Colors
Body, wheel, and powertrain colors documented for this model's era by the MMCI Paint Committee. The exact part-by-part configuration, year breaks, and footnotes are in the full paint reference. Individual tractors vary — special orders and regional exceptions were common, so confirm against your own machine.
- Prairie Gold (body)
- Cherry Red (wheels / trim)
Manuals & Literature
Factory publications cataloged for this model (MMCI / Floyd County Museum). We catalog the publication and its coverage — not its contents. Obtain copies from the museum or a reproduction seller.
Operator's Manuals
Parts Catalogs
Service / Shop Manuals
Finding Parts
We don't publish part numbers we can't verify against factory literature. The authority for this model's part numbers is its factory parts catalog; interchange is serial- and configuration-dependent, so always confirm against the parts book before buying.
Factory parts catalogs
Engine-family parts
This model uses the 165 ci (2.7 L) Four-Cylinder Gasoline, shared with RTU and 335. Many engine-family components are common across these models — verify fitment against the parts catalog, as serial- and configuration-specific variations exist.
Documented parts
Cataloged Minneapolis-Moline part numbers documented for this model. Applications vary by serial, year, and configuration — confirm against your parts book before ordering.
Clutch
- RT158-RT9500 — 8" clutch friction disc, 6-spline, 1.25" dia. (to #413856)
- RT158A-RT9500A — 9" clutch, 6-spline, 1.25" dia. (#413857 up)
Oil Filter
- RE5599 — Oil filter
Piston
- 60P36462554 — 3.625"+0.020" aluminum piston with pin & retainers
- 60P36662554 — 3.625"+0.040" aluminum piston with pin & retainers
- 60P36882554 — 3.625"+0.060" aluminum piston with pin & retainers
Steering Wheel
- Steering wheel — 15″ steering wheel (tractors to #0014901517) — 15" steering wheel (tractors to #0014901517)
- Steering wheel — 16″ steering wheel, 7/8″ — 16" steering wheel, 7/8"
- Steering wheel — 18″ steering wheel (tractors #0014901518 up) — 18" steering wheel (tractors #0014901518 up)
Surviving Examples (collector-reported census)
Owner-submitted survivors, reviewed before publishing. Collector-reported — these corroborate, but do not establish, the documented serial ranges above.
- 1 known survivor
- Serials observed: 24,900,360–24,900,360
- 906 built (per Production total source — RTS)
- Observed survival rate so far: 0.11% (1 registered of 906 built — grows as more are logged)
Sources & Verification Notes
Status: Verified
Primary source: TractorData — Minneapolis-Moline RTS tier 4
Last checked: 2026-05-31
Where this model fits in the Minneapolis-Moline history & timeline →
